ATTUATORI SCVA Ortogonali - SCVA-4 - DATI TECNICI

FORZA 35000N
FORCE 35000
Diametro vite 40
Screw diameter 40
Passo vite 7
Screw pitch 7
Velocità mm/sec
Speed
3,4 5,2 8,4 10,8 16,5
Potenza installata KW
Motor power KW
0,75 1,1 1,5 2,2 3
Grandezza motore
Size of motor
90-B5 90-B5 112-B5 112-B5 100-B5
Giri motore /1'
Motor RPM
900 1400 700 900 1400
Giri corona
Crown wheel RPM
29 45 72 93 145

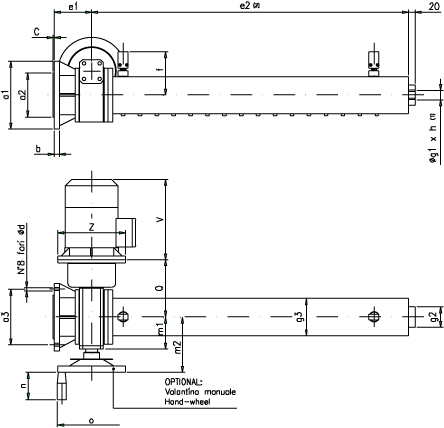

ATTUATORI SCVA Ortogonali - SCVA-4 - DIMENSIONI

Attuatori Lineari Ele-Fantini

Tipo
Type
a1 a2 a3 b c d e1 e2 f g1 g2 g3 h m1 m2 n o
SCVA - 4 200 130 165 15 3,5 11 110 260 135 24x3 65 125 40 107 176 80 200

(1) Vedere ESTREMITA STELO
(2) Aggiungere il valore della corsa

Quote di massima non impegnative

DIMENSIONE "Q"
TIPO
TYPE
  Grandezza - Size
80 90 100 112
SCVA - 4 Q 178 188 214 214

SPECIFICA MOTORI: DIMENSIONI "V" e "Z"
tipo
type
63A 63B 71A 71B 80A 80B 90S 90L 100L 112M 132S 132M 160M
V 175 188 185 204 210 230 254 280 322 346 368 406 472
Z 140 140 160 160 200 200 200 200 250 250 300 300 350
